| Brand Name : | Duolek |
| Model Number : | D53KF- 350 |
| Price : | 25000 - 493000 USD Per Set |
| Delivery Time : | 45-75 Working Days |
| Payment Terms : | L/C,T/T |

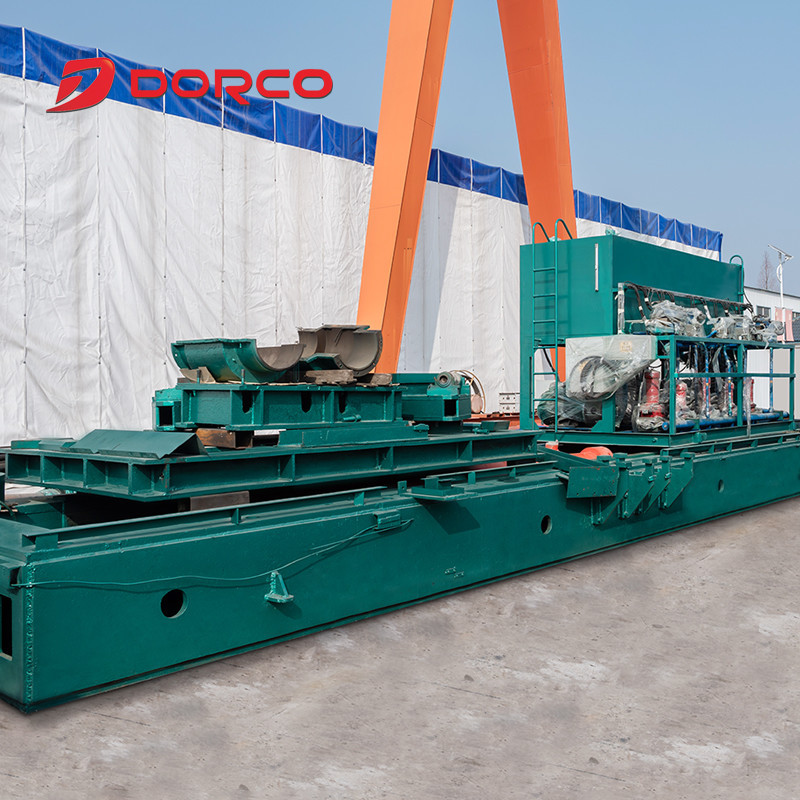

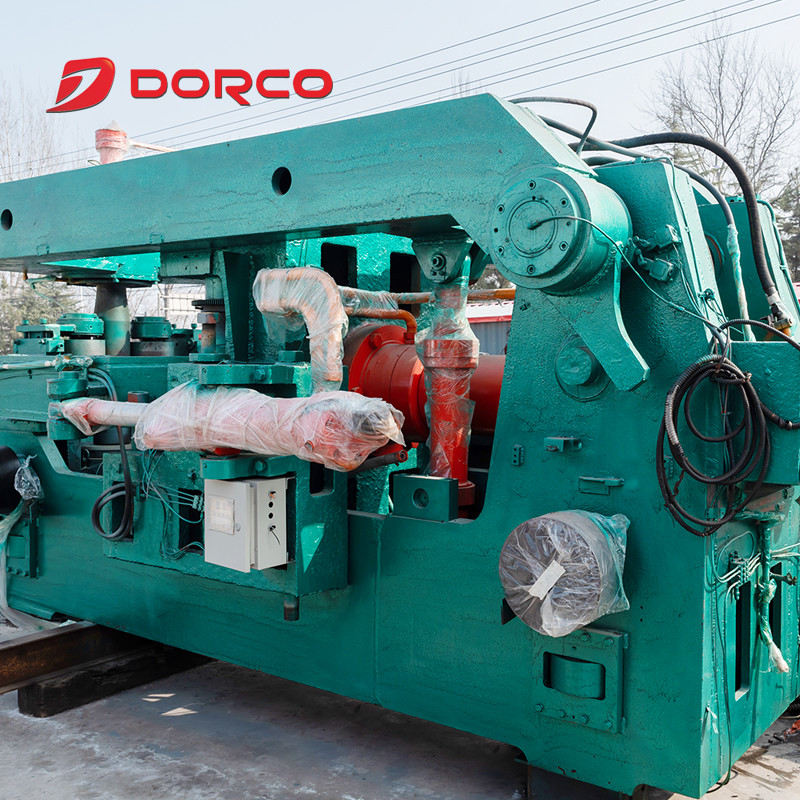

The horizontal ring rolling mill (D53KF-350) is designed for efficient rolling of precision rings with outer diameters ranging from 160mm to 350mm. This equipment is also known as a horizontal ring rolling machine or a horizontal ring forging machine, and is suitable for industrial fields with strict requirements for ring accuracy and quality.
The external dimensions of the equipment are 6750 mm x 2000 mm x
3400 mm (length x width x height), and it is designed with a high
rigidity structure to provide solid support for the rolling
process. Standard CNC system ensures precise and reliable rolling
operations, with stable and consistent results.
Real time synchronized display of rolling parameters, equipment
status, and process curves, with key data clearly visible at a
glance. The new console adopts ergonomic design, with a wide field
of view and no dead corners, making operation convenient and
efficient, significantly improving the human-machine interaction
experience and job safety.
The operation is simple and convenient, and only one electronic
handwheel is needed to complete the entire rolling process, greatly
simplifying the operation process and significantly improving work
efficiency and control convenience.
Realize multifunctional and multi station rolling to adapt to
different work requirements.
Fully automatic operation mode improves production efficiency,
saves materials and energy.
DORCO develops and produces various products that meet customer
process requirements. In addition, the company has also developed
bulging machines, loading and unloading machines, operating
machines, forging hydraulic presses, rotary forging machines, and
large-scale ring automation production lines that are compatible
with large ring rolling machines. The degree of automation has been
significantly improved, greatly improving ring quality and
production efficiency, and reducing enterprise human resource
costs. We welcome new and old customers at home and abroad to visit
us.
DRC-D53KF | 350 | 450 | 600 | 800 | 1200 | 1600 | 2000 | 2500 | 3500 |
Nominal outer diameter of grinding ring(mm) | 350 | 450 | 600 | 800 | 1200 | 1600 | 2000 | 2500 | 3500 |
Range of outer diameter of rolling ring(mm) | 160-350 | 180-450 | 200-600 | 300-800 | 300-1200 | 400-1600 | 400-2000 | 500-2500 | 700-3500 |
Ring rolling height(mm) | 50-150 | 50-200 | 50-250 | 60-250 | 60-300 | 60-350 | 60-400 | 50-500 | 80-600 |
Radial rolling force(KN) | 350 | 450 | 630 | 1000 | 1250 | 1600 | 2000 | 2500 | 3000 |
Axial rolling force(KN) | 200 | 350 | 500 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 |
Linear rolling speed(m/s) | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 |
Radial motor power(Kw) | 90 | 110 | 132 | 160 | 250 | 280 | 355 | 2*280 | 2*315 |
Axial motor power(Kw) | 55 | 55 | 90 | 2*75 | 2*110 | 2*160 | 2*220 | 2*280 | 2*315 |
Overall dimensions(mm) | 6750X2000X3400 | 6950X2150X3450 | 7050X2050X3500 | 8550X2250X 3500 | 9050X2450X 3550 | 11050X2550X3650 | 13050X3050X 3850 | 14050X3550X 4380 | 17050X3850X4550 |
DRC-D53KF | 4000 | 5000 | 6000 | 6300 | 7000 | 8000 | 9000 | 10000 | 12000 |
Nominal outer diameter of grinding ring(mm) | 4000 | 5000 | 6000 | 6300 | 7000 | 8000 | 9000 | 10000 | 12000 |
Range of outer diameter of rolling ring(mm) | 800-4000 | 800-5000 | 800-6000 | 1000-6300 | 1000-8000 | 1100-8000 | 1100-9000 | 1200-10000 | 1500-12000 |
Ring rolling height(mm) | 80-700 | 80-800 | 80-800 | 100-1000 | 100-1200 | 100-1600 | 110-1600 | 120-1650 | 130-2000 |
Radial rolling force(KN) | 3000 | 3600 | 4000 | 5000 | 6300 | 8000 | 8000 | 10000 | 12500 |
Axial rolling force(KN) | 2500 | 3000 | 3150 | 4000 | 5000 | 6300 | 6300 | 8000 | 10000 |
Linear rolling speed(m/s) | 1.3 | 0.5-1.4 | 0.5-1.4 | 0.5-1.4 | 0.5-1.4 | 0.5-1.4 | 0.5-1.4 | 0.5-1.4 | 0.5-1.4 |
Radial motor power(Kw) | 2*350 | 2*450 | 2*550 | 2*630 | 2*730 | 2*800 | 2*900 | 2*1000 | 2*1250 |
Axial motor power(Kw) | 2*350 | 2*450 | 2*550 | 2*630 | 2*730 | 2*800 | 2*900 | 2*1000 | 2*1250 |
Overall dimensions(mm) | 18050X4250X4650 | 20050X5350X4750 | 21050X6550X5550 | 24050X6850X 6550 | 26050X7550X 7250 | 30050X8550X 8050 | 36050X9050X 8050 | 40050X9550X 10050 | 48050X12050X 11050 |

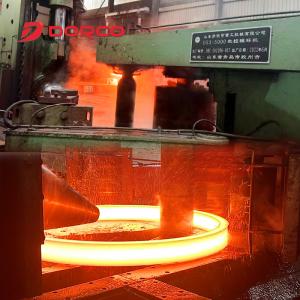

The D53KF series ring rolling machine is mainly used for processing high-quality seamless ring parts and is widely used in aerospace, petrochemical, wind power and other fields. It can produce various types of ring forgings such as bearing rings, gear rings, flanges, wheel hubs, etc.
The Product Technical Support and Services for the Horizontal Ring Rolling Machine include:
- Installation guidance and support
- Training programs for operators and maintenance personnel
- Troubleshooting assistance for any issues that may arise during operation
- Regular maintenance and servicing recommendations to ensure optimal performance
- Access to a dedicated technical support team for inquiries and assistance
|
|
